OM-211 958 Page 19

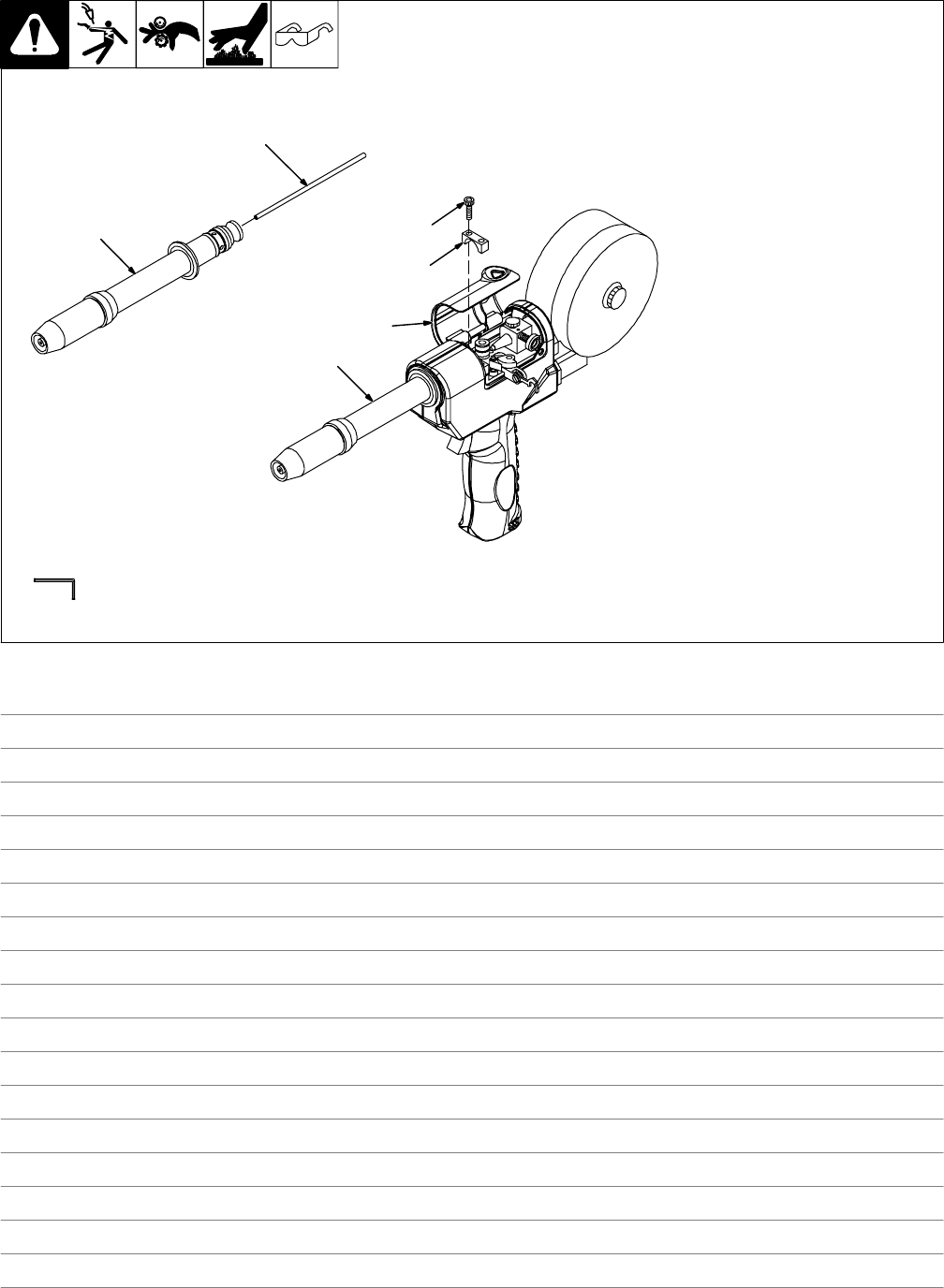

6-3. Replacing Head Tube Liner

Ref. 803 551-C

The standard head tube liner will

accommodate wire diameters from

.030-1/16 wire size.

1 Cover

2 Screw

3 Clamp

Loosen clamp screws and remove

clamp.

4 Head Tube

Remove head tube from gun.

5 Liner

Pull liner out of head tube.

Insert liner into head tube and

reinstall head tube onto gun.

. A twisting motion may be need-

ed to feed liner thru head tube.

4

5

5/32 in

1

2

3

4

Tool Needed:

Notes
