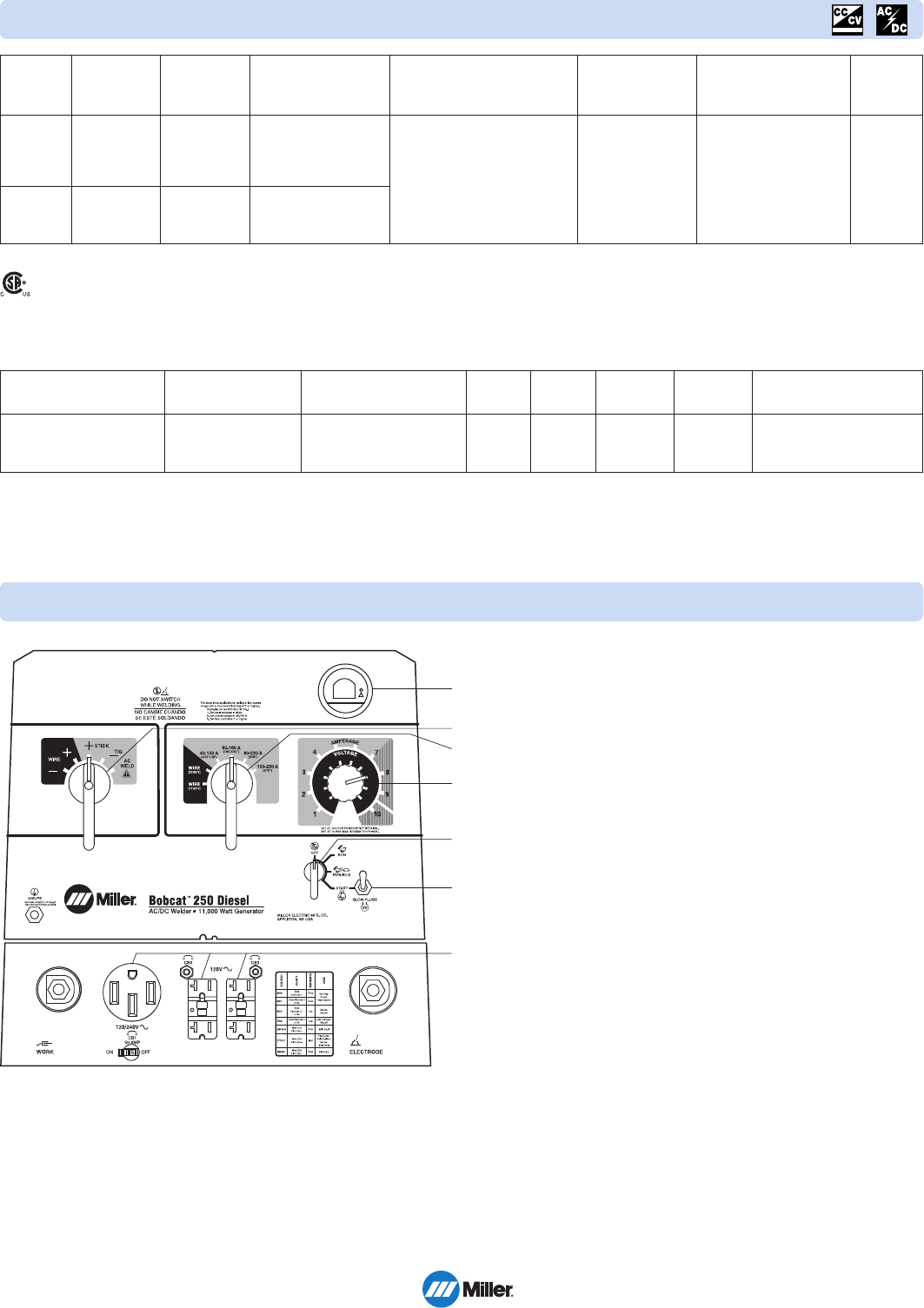

Specifications (Subject to change without notice.)

Function and Benefit Guide

1. Maintenance Displays provide fuel level, engine hours and oil

change interval information; plus high coolant temperature and low

oil pressure shutdowns.

2. Weld Process Selector Switch makes choosing between Stick, Wire

and TIG processes easy. Switch also auto matically changes polarity

with process selection to make sure the machine is easy to set with

little effort or knowledge.

3. Coarse Range Control. Four Stick/TIG and two Wire ranges are

available for output control. Stick/TIG ranges are designed to

electrode diameters (3/32, 1/8, 5/32 and 3/16-inch) making these

models very easy to set.

4. Fine Adjust Control makes it easy to fine tune amperage within a

coarse range. Set control above 7 for best power while welding and

to 10 for generator-only use.

5. Engine Control Switch is used to start the engine and then select

between Run/Idle and Run.

6. Glow Plugs assist in cold weather starting.

7. 120 VAC and 240 VAC Covered Receptacles with Circuit Breakers.

Note: For matching plug, order #119 172.

Welding

Mode

CC/AC

CC/DC

CV/DC

Process

Stick/TIG

MIG/FCAW

Rated Weld Output

at 100% Duty Cycle

(at 104° F/40° C)*

250 A at 25 V

250 A at 28 V

(275 A at 25 V,

60% duty cycle)

Amp/Volt

Ranges

40–130 A

60–160 A

80–225 A

100–250 A

17–22 V

20–28 V

Single-Phase

Generator Power

Peak: 11,000 watts

Continuous: 9500 watts

120/240 VAC, 88/44 A, 60 Hz

Sound Levels at

Rated Output,

7 m (23 ft.)

80 dB

(104.9 Lwa)

Net

Weight**

638 lb.

(289 kg)

Dimensions

H: 28 in. (711 mm)

H: 34.375 in. (873 mm)

(to top of exhaust)

W: 20 in. (508 mm)

D: 45.375 in. (1153 mm)

*Rated at sea level. **Net weight without fuel.

Certified by Canadian Standards Association to both the Canadian and U.S. Standards.

Engine Brand

and Warranty

Kubota D722,

2-year limited

North American warranty

Horsepower (HP)

19 HP at 3600 RPM

Weld

Speed

3600

RPM

Idle

Speed

2450

RPM

Type

Three-cylinder, industrial

liquid-cooled, diesel

Fuel

Capacity

12 gal.

(45 L)

Standard Shutdowns

High coolant temperature/

low oil pressure/low fuel

Oil

Capacity

3.4 qt.

(3.2 L)

Engine Specifications (Engines warranted separately by the engine manufacturer.)
